OpenMV

Camera Detection

Camera detection is accomplished with an onboard library from OpenMV. Originally, we were faced with an issue with incompatibility. The pyb micropython library, which was originally intended for use with the stm32 microprocessor found on the OpenMV H7 was no longer usable with the i.MX RT1062 microprocessor on the OpenMV RT1062. Thus, we had to improvise our communication and detection systems.

Detection

The sensor object is still usable with the new microprocessor, so we were able to access the blob class. This class, combined with colorr thresholds, was able to identify the goals given their unique colors.

thresholds = [
   (72, 90, -4, 36, 24, 48),
   (14, 33, -11, 10, -47, -12)
]

blobs = img.find_blobs(thresholds, pixels_threshold=200, area_threshold=200)

This formulates the base of our detection capabilities. However, the camera can still see over the top of the field, so there may be some issues such as detection of blue and yellow shirts and non-game objects. Thus, we limit the detection area to under the halfway point and only identify the largest blob.

if blobs:
    largest = blobs[0]
    for blobsss in blobs:
        if blobsss.area() > largest.area():
            largest = blobsss
blob = largest
    if blob.cy() > (240/2)+20:
        # These values depend on the blob not being circular - otherwise they will be shaky.
        if blob.elongation() > 0.5:
            img.draw_edges(blob.min_corners(), color=(255, 0, 0))
            img.draw_line(blob.major_axis_line(), color=(0, 255, 0))
            img.draw_line(blob.minor_axis_line(), color=(0, 0, 255))
        # These values are stable all the time.
        img.draw_rectangle(blob.rect())
        img.draw_cross(blob.cx(), blob.cy())

        if blob.cx() < (320/2)-bufferVal:
            print("Left: " + str(int(maptrans(blob.cx(), 0, 320, 0, 250))))
            print(int(maptrans(blob.cx(), 0, 320, 0, 250)))
            pwm.duty_ns(int(maptrans(blob.cx(), 0, 320, 0, 250))*1000)
        elif blob.cx() > (320/2)+bufferVal:
            print("Right: " + str(int(maptrans(blob.cx(), 0, 320, 0, 250))))
            pwm.duty_ns(int(maptrans(blob.cx(), 0, 320, 0, 250))*1000)
        else:
            print("Center: " + str(int(maptrans(blob.cx(), 0, 320, 0, 250))))
            pwm.duty_ns(int(maptrans(blob.cx(), 0, 320, 0, 250))*1000)

        if blob.area() > 8000:

            print("Near")

        # Note - the blob rotation is unique to 0-180 only.
        img.draw_keypoints(
            [(blob.cx(), blob.cy(), int(math.degrees(blob.rotation())))], size=20
        )
    #print(clock.fps())

else:
    pwm.duty_ns(500000)
print(pwm.duty_ns())

Communication

You will notice that part of the previously created code also includes the communication protocol. Although originally we were planning on using SPI for communication, the difficulty of slaving the OpenMV camera for data transfer so that both SCK pins would not attempt to simultaneously drive the clock signal resulted in us attempting a different approach:

from machine import PWM
from machine import Pin

p = Pin("P3", Pin.OUT)

pwm = PWM(p, 1000)

This sets up a PWM object given by the OpenMV library for use with pins on the RT1062. By modifying the duty cycle %, we can send a pulse with a different width. We decided to use this width, measuring in microseconds, to transfer our data.

We began by mapping (see API reference maptrans()) the x pixel value that we get a value from 0-250 that we send in the PWM signal. When there is no goal detected, we will send a PWM signal of 500.

def maptrans(num, inMin, inMax, outMin, outMax):
    return outMin + (float(num - inMin) / float(inMax - inMin) * (outMax - outMin))

Then, we can adjust the width of the pulse (duty cycle %) with pwm.duty_ns

This way, when read from the Teensy, we can just use pulseIn().

int val = pulseIn(10, HIGH, 1000);
if (val>0){
    Serial.println(val);
}

A value of 1000 for the timeout is required since the width of the pulses are hundreds of microseconds, so we must have 1000 µs as a timeout time in order to catch the entire pwm signal rather than parts of a pwm signal.

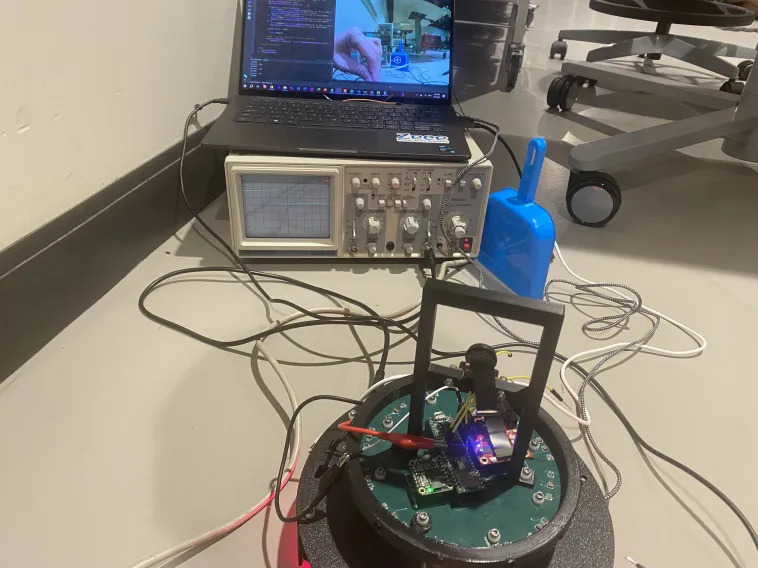

The resulting square wave is visible on an oscilloscope. Thus we can be assured that the signal is indeed being produced when degbugging.
